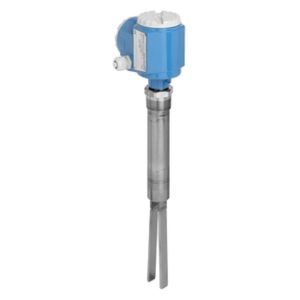

FTM51-AGG2L4A32AA Vibronic Point Level Detection Soliphant FTM51

Approval: A Non-hazardous area
Process Connection: GG Thread EN10226 R1-1/2, d=43mm/1.69" sensor combinable with sliding sleeve
Material; Surface Refinement: 2 316L; Ra<=3.2um/126uin, w/o
Overall Length; Bulk Density: L 1000 mm ..... mm; min 10g/l standard fork
Electronics; Output: 4 FEM54; relay DPDT, 19-253VAC/55VDC
Type of Probe: A Compact
Housing: 3 F17 Alu IP66/67 NEMA Type 4X Encl.
Cable Entry: 2 Gland M20 (Ex d > thread M20)
Additional Option 1: A Not selected
Additional Option 2: A Not selected

Specs at a glance
Process temperature
-50°C ... 280°C
(-60 °F ... 540°F)
Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi)
Min. density of medium
Standard fork: 10 g/l
Short fork: 50 g/l

Field of application
Soliphant FTM51 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.
Point level switch for fine grained solids and powder.

• Process connections: Threads, flanges and hygienic connection (Tri-Clamp)
• Temperature: -50 to +280°C (-60 to +540°F)
• Pressure: -1 to +25bar (-14.5 to +360psi)
• Sensor length: 300mm to 4,000mm
• Sensor material: 316L (3,2µm, 0,8 µm, PTFE coated, ETFE coated)
• International explosion protection certificates

Benefits

• SIL2 in accordance with IEC 61508
• No mechanically moved parts, free of maintenance
• Measurement not affected by build-up or external vibration
• Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
• Build-up and abrasion display selectable, density setting and switching delay selectable
• Choice of coated or polished sensor
• Build-up and corrosion detection
