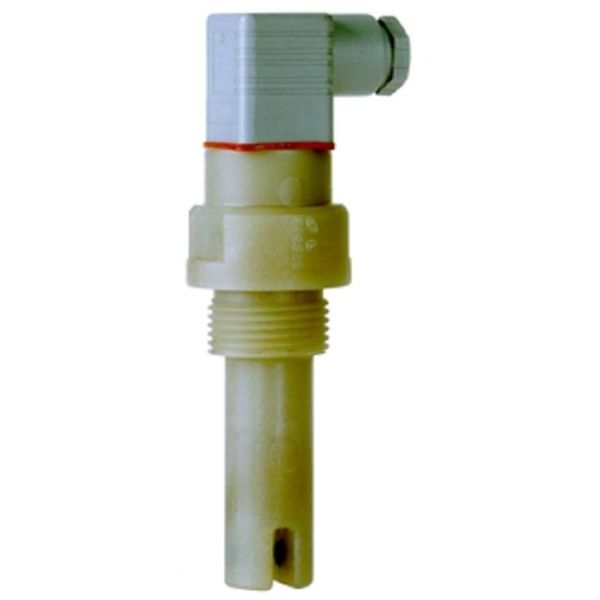

CLS21-C1E4A Analog Conductivity Sensor Condumax CLS21

Measuring Range; Cell Constant: C 0,01-20,0mS/cm; (K=1)
Process Connection: 1E Thread G 1"; PES
Cable Connection: 4 Plug DIN 4-pole, PG9
Temperature Sensor: A Pt100

Specs at a glance

Measurement range
k=1: 10,0 µS/cm - 20,0 mS/cm
Process temperature
max. 135°C
(max. 275°F)
Process pressure
max. 16 bar at 20°С
(max. 232psi at 68°F)

Field of application
Condumax CLS21 is a robust conductivity sensor for all process and environmental applications. It provides you with precise and reliable measuring values for an optimum process and product quality monitoring. Better still, the sensor features high chemical, thermal and mechanical stability and high durability.

Condumax CLS21 measures conductivity in all process and environmental applications, such as:

• Potable water treatment
• Desalination plants
• Industrial water treatment
• River/lake monitoring
• Phase separation in medium conductivities (e.g. milk/water)

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

• Reliable and accurate measuring values at medium to high conductivities
• Robust design for long durability and low maintenance
• High chemical, thermal and mechanical stability
• Quality certificate stating the individual cell constant

Common related models:

Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months

​
