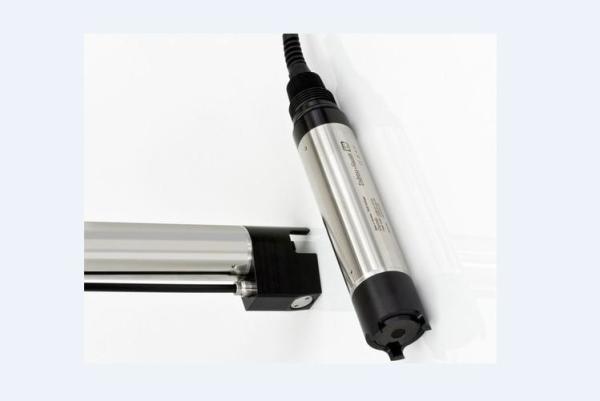

E&H Instrume Digital Oxygen Sensor Oxymax COS61-A1F0 Memosens

Description:

Oxymax COS61 is a high-performance oxygen sensor that offers fast, accurate and drift-free measurement. It supports your process with low maintenance, high availability and easy handling.

The sensor's long-term stable fluorescence layer is exclusively oxygen-selective (interference-free), ensuring consistently reliable measurement.

Product name : Oxygen sensor OXYMAX-W COS61

Extended order code : COS61-A1F0

A-Approval: Non-hazardous area

1-Cable Length:7m

F-Head: Thread G1, fixed cable

0-Accessory: w/o accessory

Weight

With cable length 7 m (23 ft): 0.7 kg (1.5 lbs.)

With cable length 15 m (49 ft): 1.1 kg (2.4 lbs.)

With TOP68 plug-in connection: 0.3 kg (0.66 lbs.)

Materials

Sensor shaft:stainless steel 1.4571 (AISI 316Ti)

Cap with fluorescence layer:POM

Fluorescence layer:Silicone

Process connection : G1

Sensor cable : shielded 7-core fixed cable or double-shielded coaxial cable with 4 pilot wires (with TOP68 plug

connection)

Maximum cable length : max. 100 m (330 ft, (including cable extension))

Temperature compensation : internal

Interface : RS 485

Shipping Weight : 2 Kg

Specs at a glance

Measurement range
0 to 20 mg/l
0 to 200 %SAT
0 to 400 hPa

Process temperature
-5 to 60 °C
(20 to 140 °F)

Process pressure
Max. 10 bar abs
(Max. 145 psi)
