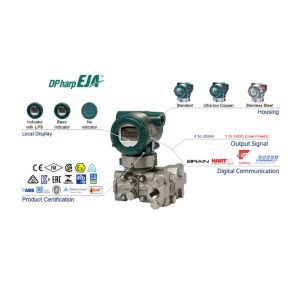

EJA115E-DMS4G-912ED-N00NN0 Yokogawa EJA Low Flow Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA115E-DMS4G-912ED-N00NN0
Product type : Low Flow Transmitter
Output signal : D = 4 to 20 mA DC with digital communication (BRAIN
protocol)
Measurement span (capsule) : M = 2 to 100 kPa (8 to 400 inH2O)
Wetted parts material : S = Cover flange and process connector ASTM
CF-8M , Capsule Hastelloy C-276 (Diaphragm) F316L SST, 316L SST
(Others) , Capsule gasket Teflon-coated 316L SST , Vent/Drain plug
316 SST
Process connections 4 = 1/2 NPT female
Bolts and nuts material : G = For cover flange 316L SST, for
process connector 316L SST, for manifold 316L SST
Installation : 2 = Vertical impulse piping type, right side high
pressure, manifold upside
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical
connections without blind plugs
Integral indicator : D = Digital indicator
Mounting bracket : D = 304 SST or SCS13A 2-inch pipe mounting, L
type (for vertical piping)
N = Always N
00 = Always 00
N = Always N
N = Always N
0 = Always 0
Shipping weight : 7KG
Additional Informaiton:
The EJA-E series of transmitters is Yokogawa's most recent
evolution of the DPharp family. Released in 2012, it combines the
ruggedness and success of the work-horse EJA-A series with the
performance of the thoroughbred EJX-A series to deliver the type of
product you have come to expect from Yokogawa.The EJA115E is Differential Pressure Transmitter in the series that
is optimized for low flow applications with the addition of an
Integral Flow Orifice (IFO).
EJA115E features include:
- 0.055% Square Root Output Accuracy
- 0.1% per 10 years Stability (DP)
- Exida and TUV SIL 2/3 Certified
- 90 ms ~ 150 ms Response Time
- Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION
Fieldbus, PROFIBUS PA, BRAIN communication.
