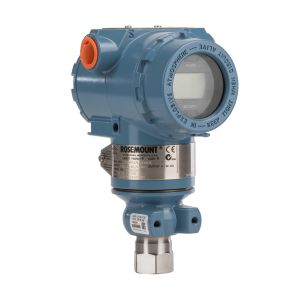

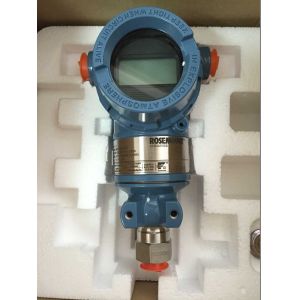

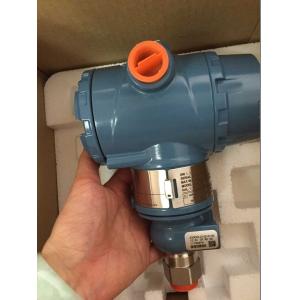

Emerson Rosemount 33051TG3A2B21AB4M5 In-Line Pressure Transmitters

Description:

Manufacturer : Rosemount
Product No. : 3051TG3A2B21AB4M5
Product type : 3051T In-line Pressure Transmitter
Pressure type : G = Gage
Pressure range : 3 = –14.7 to 800 psi (–1,01 to 55,15 bar)
Transmitter output : A = 4–20 mA with digital signal based on HART Protocol
Isolating diaphragm,Process connection wetted parts material : 2 = 316L SST,316L SST
Sensor fill fluid : 1 = Silicone
Housing material,Conduit entry size : A = Aluminum, ½–14 NPT
Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, all SST
Weight : 1.9 Kg
Shipping weight : 8 Kg

Additional Informaiton:

Rosemount 3051T In-Line Pressure Transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

Features & Benefits

HART compatible for easy configuration and calibrationComes standard with 316 stainless steel wetted materials for durability in most process applications
Local display option for easy field measurements

Specifications of Rosemount 3051TG Pressure Transmitter

Output: 4-20 mA with digital signal based on HART Protocol;

Low Power, 1-5 V dc with digital signal based on HART Protocol;

Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range: 0-0.3 to 0-10,000 psi

Accuracy: 1-5: +/-0.075% of span

Power: 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load

Materials: Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel

Fluid: Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting: Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST

Important terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 3kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months

Common models:

Great System In.(GSI) a name synonymous with Process Control Instrumentation and Electrical and Instrument and Solution Provider have established themselves as a Quality Leader since its inception in 1998 based at Hong Kong ( China ).

For more than 25 years, we have successfully executed many prestigious orders by supplying Sophisticated Electronic Instruments and Control Systems and HT Panel and LT and Panel. Indigenization of the instruments of our product range have been in hand with our commitment to the manufacture of safe, reliable and quality instrument. Our thrust today is in the field of microprocessor based instrumentation and control systems. A knowledge inspiring and skilled arena that we are in, we are staffed to meet the dictates of the field and thus can provide various control and monitoring software packages for Instrumentation and control.

Application Gallery

Power : Feed Water (Drum Level & DP across Drum Level), Furnace Vacuum, SH Steam Temp Stage I & II (L&R), Dearator Level, Condenser Hotwell Level and REC, HP Heater Level, LP Heater Level, Gland Seal Steam Pressure, Gland Steam Temperature, Thermal Load, FD, PA and Vapor Fan Control

Oil & Gas : Platform & Pipeline, Catalytic Cracking, Distillation Columns, Blending, Reactors

Pulp & Paper : Stock Preparation, Chest Box, Bleaching

Mining : Ore Dressing, Pyro/Hydro Processing, Electrolytic Refining, Crushers, Ball Mills, Classifiers, Filters, Flotation Devices, Magnetic Separators, Calcining Kilns, Digesters, Evaporators

Food & Beverages : Evaporators, Blending & Batching, Fermenting

Steel : Blast Furnaces, Continuous Casting, Reheating Furnaces, Biological Waste Treatment, Annealing Lines Sintherization

Water & Waste Water : Filter Backwash, Chemical Feed, Clear well Level, Finished Water Pumping, Remote Workstation Monitoring, Sludge Process, Sequencing Batch Reactor Plants, Rotating Biological Contactor Plant, Sludge Dewatering, Incinerator Control, Return and Waste activated sludge pumping
