Product Specifications

Attribute	Value	Attribute	Value
Manufacturer	YOKOGAWA	Number of I/O channels	8-channel input/8-channel output, non-isolated
Part Number	AAI841-H03 S1	Transmitter power supply	14.8 V or higher (at 20 mA) 26.4 V or less (at 0 mA) (*4)
Product type	Analog I/O Module	Setting of 2-wire or 4-wire transmitter	For each channel by setting pin
Weight	0 lbs 11.0 oz (0.3kg )	Temperature drift	±0.1 %/10 °C
Dinemsion	5.0" x 1.0" x 5.0"(12.7 cm x 2.5 cm x 12.7 cm)	Maximum current consumption	310 mA (5 V DC), 500 mA (24 V DC)

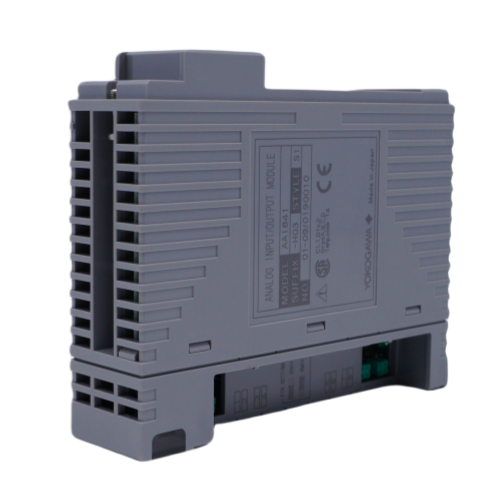

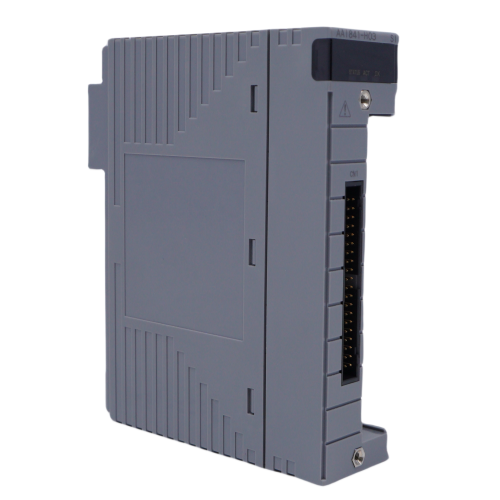

Three View of YOKOGAWA AAI841-H03 S1

Deatails of YOKOGAWA AAI841-H03 S1

DESCRIPTION

The Yokogawa AAI841-H03 S1 is a versatile Analog I/O Module featuring 16 channels for 4-20 mA input and output signals. It integrates HART protocol for digital communication and includes the ISA Standard G3 option. With a temperature range of -20 to 70 °C, it is designed for reliable performance in various industrial environments.

APPLICATION

Environmental Monitoring: Measures variables like temperature, pressure, and flow in environmental monitoring systems, ensuring accurate data collection.

Manufacturing Automation: Integrates with automated systems to manage and control manufacturing equipment, improving efficiency and precision.

FEATURE

16 Channels: Provides 16 channels for both analog input and output, supporting multiple signal connections in a single module.

4-20 mA Signals: Compatible with 4-20 mA current loop signals, commonly used in industrial process measurements.

HART Communication: Supports HART digital communication protocol, allowing for enhanced device diagnostics and configuration.
