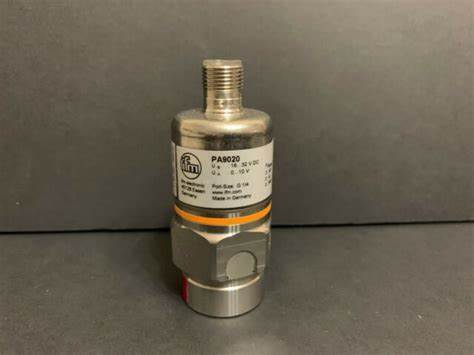

IFM Pressure transmitter with ceramic measuring cell PA9020 PA-400-SBR14-B-DVG/US/V in stock

IFM Pressure transmitter with ceramic measuring cell PA9020 PA-400-SBR14-B-DVG/US/V in stock

• Precise linear 0...10 V output signal
• High repeatability and low linearity error
• With long-term stability thanks to high overload protection
• Robust stainless steel housing for use in harsh industrial environments
• Large operating temperature range and high protection rating
•


  Product characteristics

  Number of inputs and outputs	Number of analogue outputs: 1
  Measuring range	0...400 bar 0...5800 psi 0...40 MPa
  Process connection	threaded connection G 1/4 internal thread

  Application

  Special feature	Gold-plated contacts
  Application	for industrial applications
  Media	liquids and gases
  Conditionally suitable for	use in gases at pressures > 25 bar only on request
  Medium temperature[°C]	-25...90; (on request: -40...90 °C)
  Min. bursting pressure	1000 bar 14500 psi 100 MPa
  Pressure rating	600 bar 8700 psi 60 MPa
  Type of pressure	relative pressure

  Electrical data

  Operating voltage[V]	16...32 DC
  Current consumption[mA]	< 18
  Min. insulation resistance[MΩ]	100; (500 V DC)
  Protection class	III
  Reverse polarity protection	yes

  Inputs / outputs

  Number of inputs and outputs

  Number of analogue outputs: 1

  Outputs

  Total number of outputs	1
  Output signal	analogue signal
  Number of analogue outputs	1
  Analogue voltage output[V]	0...10
  Min. load resistance[Ω]	2000
  Overload protection	yes

  Measuring/setting range

  Measuring range

  0...400 bar 0...5800 psi 0...40 MPa

  Accuracy / deviations

  Repeatability[% of the span]	< 0,1; (with temperature fluctuations < 10 K)
  Characteristics deviation[% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
  Long-term stability[% of the span]	< ± 0,05; (per 6 months)
  Temperature coefficient zero point[% of the span / 10 K]	0,1; (0...80 °C)
  Temperature coefficient span[% of the span / 10 K]	0,2; (0...80 °C)

  Response times

  Step response time analogue output[ms]

  3

  Operating conditions

  Ambient temperature[°C]	-25...80
  Storage temperature[°C]	-40...100
  Protection	IP 68; IP 69K

•
